Features

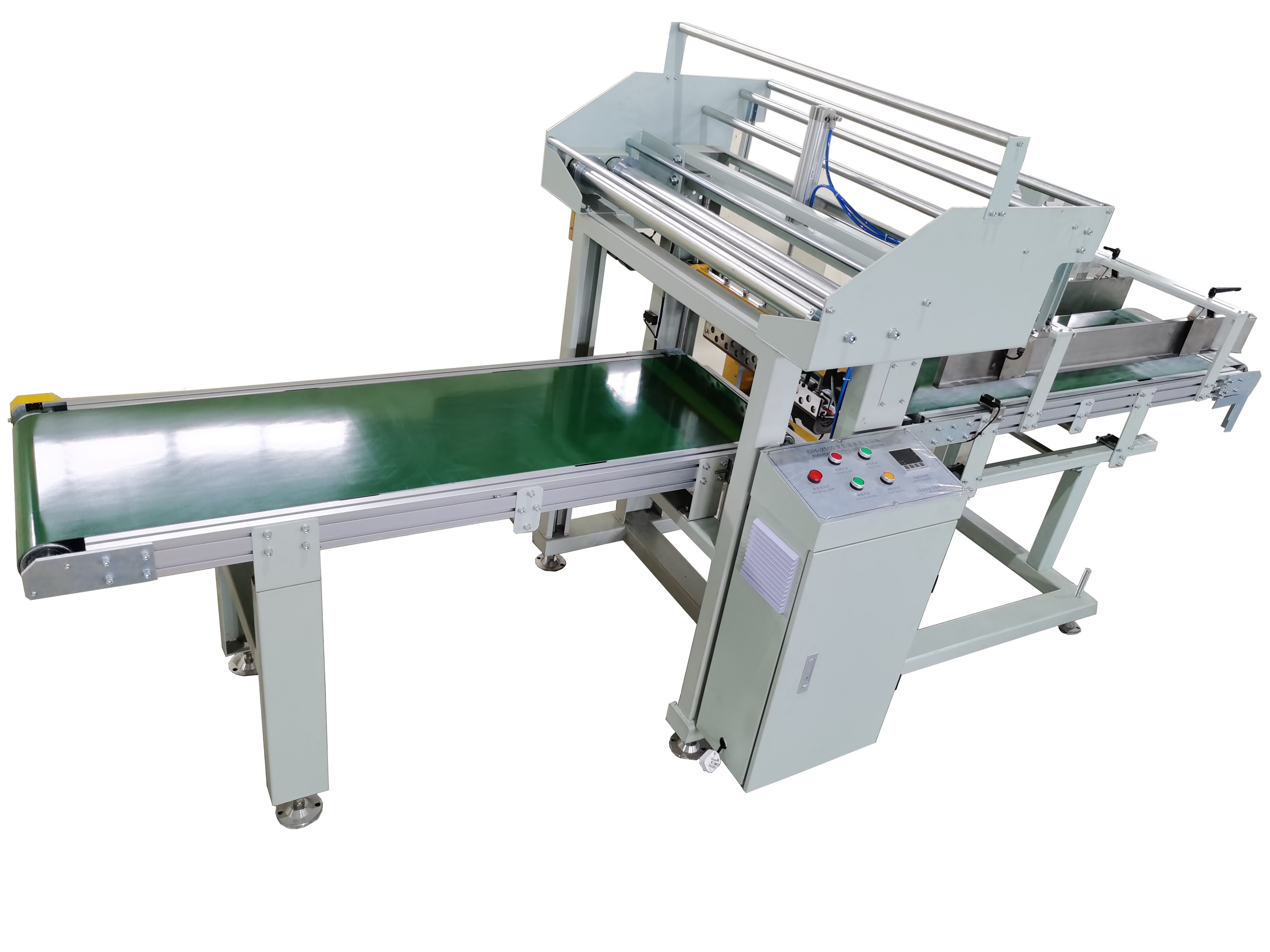

It adopts a frame-type design to connect the whole line. It has high stability and the heating part is a stainless steel heating tube, which is suitable form as shrink packaging for wooden flooring. Controlled by PLC, which greatly reduces the work intensity and increases production efficiency.
It cuts the shrink foil to packaging width and puts the splice in the middle on one side, which presents your product particularly nicely.
Combined with the dual compartment shrink tunnel, the MLY-Film delivers the best packaging results.
Advantage
- Very solid packaging machine
- High packaging capacity
- Great packaging results
- Energy friendly shrink tunnel
- It splices the shrink film completely shut along both the longitudinal and the lateral sides. This way your parquet is completely protected against dirt, dust and moisture.
|
Technical information |
|
| Power | ≤3KW |
| Power Supply | 110/220V; 50/60HZ; |
| Max. Packing Size L×W×H | 800~1380*200~400*48~120mm |
| Packing Speed | 6-8 packs/min |
| Shrink Film | PE
Thickness: 0.04-0.08mm |
| Sealing Knife
Temperature Control |
Room Temperature to 300℃ |
| Conveyor | PVC |
| Air Source | 6-7kg/cm2 |
| Flooring dimensions
L×W×H |
1650*1400*1500mm |
| Crate Size
L×W×H |
1800*1510*1750mm |
| G./N. Weight | 250/200kg |
